Boiler Maintenance Platform for power plant is used for repair and checking the inner of the boiler,it’s can be arrive the comanys’ requriment who can supply the boiler service work.

In order to pass through  narrow manhole of the boiler(maybe the diameter is about 500mm),the boiler platform is special designed as such as modules which can be assemble and unassemble easly.

The whole platform can be put into the upper box.

What’s more,our platform is made of 6061 aluminium alloy with the suspension jibs of hot galvanized with the rated load  630kg or 800kg, with the working length 3-12m.

• The End stirrup platforms’ length and rated load:


  Type	Platform Length (L*W*H)	Max.Load (kg)	Self Weight (kg)
  GJPT-PE630-3	3*0.68*1.1	360	365
  GJPT-PE630-4	4 (2+2)*0.68*1.1	480	400
  GJPT-PE630-5	5 (3+2)*0.68*1.1	600	425
  GJPT-PE630-6	6 (3+3)*0.68*1.1	630	450
  GJPT-PE630-7	7 (3+2+2)*0.68*1.1	630	485
  GJPT-PE630-8	8 (2+3+3)*0.68*1.1	610	510
  GJPT-PE800-6	6 (3+3)*0.68*1.1	720	450
  GJPT-PE800-7	7 (3+2+2)*0.68*1.1	800	485
  GJPT-PE800-8	8 (2+3+3)*0.68*1.1	800	510

• Paremeter of GJPT-PE Series:


  Lifting speed	9m/min	Wire rope	GJPT-PE630 4*31SW+FC 8.3mm GJPT-PE800 4*31SW+FC 9.1mm
  Hoist	LTD series
  Safety lock	LSF anti-tilting	Cable	3*2.5mm+2*1.5mm
  Installing frame	End stirrup	Safety rope	Dia. 17mm

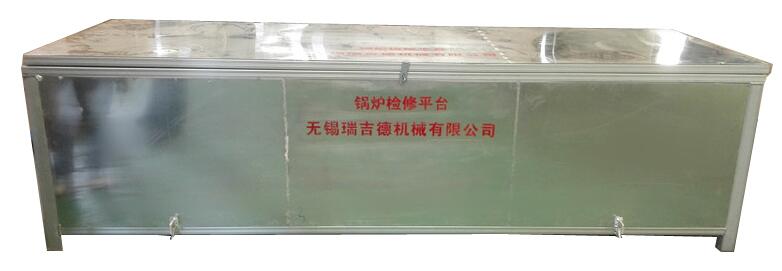

  Bottom plate	Split type	Storage method	Platform,hoist,safety lock and electrical control box contained in special metal storage tank
  Fence	Split type

• Safety system on GJPT-PE :
  1.Brake in the hoist
  2.Two upper limited switches
  3.Emergency Stop
  4.Manual descent in case of power failure
  5.Phase controller
  6.leveling device
  7.Wire rope reeler(optional)
  8.Overload sensor in the hoist(optional)

Customized Power Plant Boiler Maintenance Platform:
