Hoist For Wind Turbine Service Lift

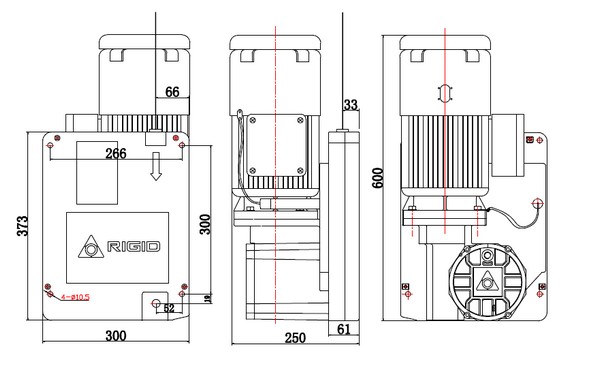

hoist for wind turbine service lifting Size:
122

It is specially designed for wind turbine service lifting with EN 1808 safety standard.
And the hoist have manual descending mechanism and hand wheel ascending mechanism.
If you like ,mechanism overload limit device can be your optional choice.

Parameters:

TypeZLP1000
Rated Loading1000kg
Lifting Speed9.0m/min
Voltage-3phase380V(415V/220V)
Frequency50Hz/60Hz
Rated Power2.0x2
Hoist ModelLTD100
Safety Lock ModelLSF310
Wire Rope4x31SW+FC-10.2mm
Platform Size
(LxWxH)
(2.5x3)x0.76x1.45m
Weight Of Suspension
Jibs
340kg
Weight Of Lifting Parts520kg(Steel),340kg(aluminum)
Counter Weight1200kg
20' GP Qty of
Package
9Sets
