This lifting equipment can lift the material from a lower position to a higher position and move the material horizontally which is a big difference from normal material lifting equipment.

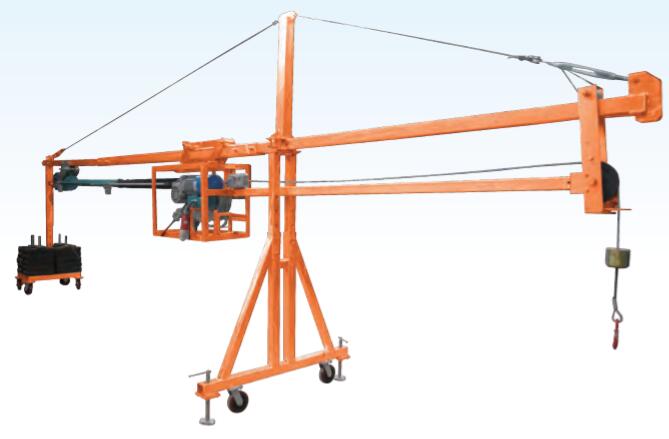

This curtain wall installation machine  is composed of suspension,suitable counter weight,a wire rope lifting hoist which can lift the materials vertically,and a electrical push rod which can move the materials horizontally for about 1.5 meter.
It is very suitable for glass curtain wall installation,specially installing the heavy and big size of glass.
Feature of this lifting equipment:
1.Compact design,Wire rope collecting device is driven directly by the hoist.
2.Limited swith for vertical lifting and horizontal moving,end of wire rope and no descent in case of power failure.
3.Wireless controller and mechanic overload sensor(Optional)

Model	MH509	MH514	MH518
Rated Loading (kg)	500	500	500
Lifting Speed (m/min)	9	14	18
Wire Rope Dia. (mm)	8.3	8.3	8.3
Suspension Point Extension Length (mm)	1000-2000	1000-2000	1000-2000
Maximum Lifting Height (m)	150	150	150
Pushrod Flex Length (mm)	1500	1500	1500
Pushrod Flex Speed (mm/s)	50	50	50
Pushrod Motor Power(kw)	1.1	1.1	1.1
Voltage and frequency is available upon request.


Video for  the big size of curtain wall installation  (This video is from our customer).
