2000KG Traction Hoist,LTD200 Series

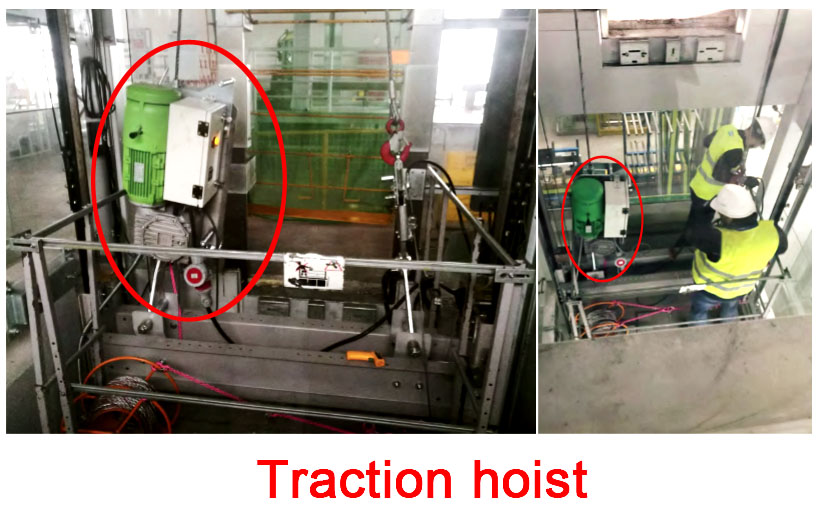

- The new designed LTD200 traction hoist is designed for scaffold-less installation of elevator .Because its rated loading is 2000kg, so it can meet the demands of heavy elevator installation.
- Designed and manufactured according to EN1808:2015 and certified by TUV CE.
- An inner overload limiter can make the hoist more safe and reliable.
- Two lifting speed for optional,6m/m or 12m/min
- Can meet the special needs of customers: upper limited switch ,intergrated electronic control box and other supporting
Accessories.Application:
Model LTD200-P Rated loading 2000kg Speed 6m/min or 12m/min Ip class IP55 Diameter of steel wire rope 14mm Working temperature range -20℃--50℃ Weight 113 Overall dimension (H*W*D) 720*400*370mm
